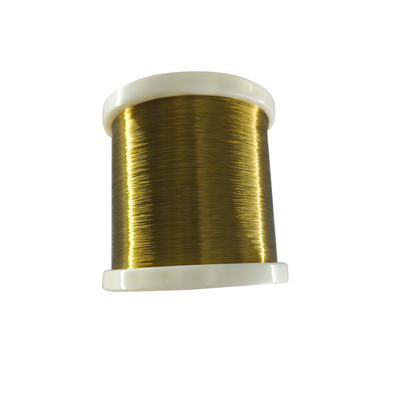

0.13mm Enameled CuNi44 Resistance Wire - 0.49 UΩm, 400°C Max Temp, IEC 60317 Compliant
|
รายละเอียดสินค้า:
การชำระเงิน:
|
รายละเอียดสินค้า
| Color: | Nature,black,red,green,yellow | Solid Wire: | CuNi44 |
|---|---|---|---|
| Class grade: | 130℃,155℃,180℃,200℃,220℃ | OEM: | Available |
| Insulation type: | Enameling | Application: | OEM |
| Min Dia.: | 0.02mm |
0.13mm Enameled CuNi44 Resistance Wire - 0.49 UΩm, 400°C Max Temp, IEC 60317 Compliant
Product Description
These enameled resistance wires have been broadly used for standard resistors, High Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare alloy wire
| Copper-nickel alloy wire, | Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire, | |
| Ni-Cr Alloy wire |
Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15, NiCr80/20,NiCr90/10,NiCr AA,Karma. |
|
| Fe-Cr-Al Alloy wire |
Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2, | |
| Any copper alloy and nickel alloy is available | ||
Color of enameled insulation:
| Red,Green,Yellow,Black,Blue,Nature etc. |
Type of insulation
| Insulation-enameled Name |
(working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enameled wire | 130 | UEW | QA | MW75C |
| Polyester enameled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enameled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 |
EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enameled wire | 220 | AIW | QXY | MW81C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Enameled-W | Wire | D=0.018mm~3mm | ||
| Enameled-R | Ribbon | W=0.4~24 | T=0.01~0.2mm | |
